Elevator SR

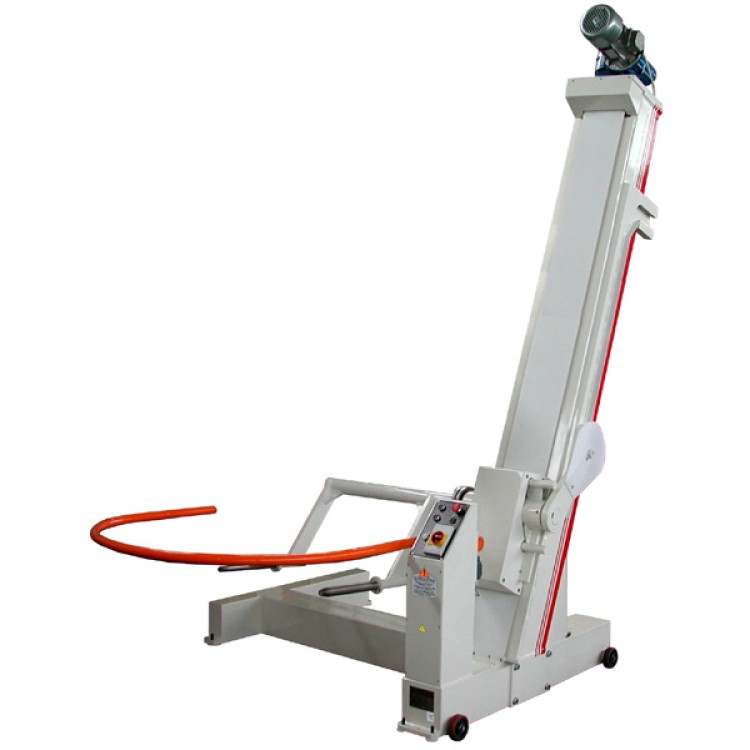

Single column elevator
Structure of new concept which allows to perfectly turn over, with no need for a chute, the bowls of any type of mixer and planetary mixer. It turns over directly on the working bench, either on the hopper of the dividers or of the dough feeding hoppers. The reduced overall dimensions and the lifting speed, are peculiar features of this new model. Very practical hooking and unhooking system of the trolley. Superior and inferior bowl run-ending device on double circuit. It is supplied for any tipping height according to the various needs. It can work also with two bowls with different capacity. It is equipped with a safety system according to the Laws in force. It is available in two differents models: with column on the left side or on the right side.

Double column elevator
This is a steel frame made of two struts connected to each other by a base so as it can be easily detached. The sturdy properties of this frame enable the lifting of bowl-trolleys with capacities from 120 to 300 kg). Electric and mechanical drive units ensure safety for lifting operations. Fitting of the trolley into the lifting couplings is practical and secure. The elevator is mounted on wheels and after its final positioning it can be fixed to the floor. The safety guard and lifting speed comply with safety standards. Control panel and wiring system conform to IP55 protection class, and motors to IP54 protection class.
A bowl cleaning unit is available as optional.
The machine is manufactured in compliance with current safety, health and electrical regulations. Authorization is required from the manufacturer for any applications differing from those envisaged.
